Video Switcher

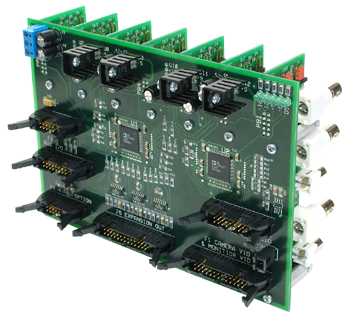

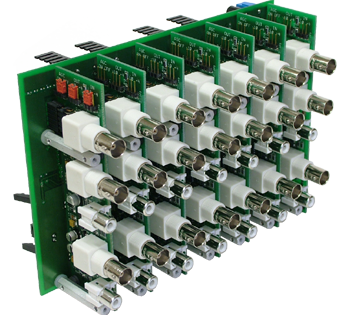

This assembly is the core for a custom 16x16 video switcher specifically designed for use in on-set video assist.

The finished switcher supports 6 camera inputs, 6 playback devices and 6 remote monitor "stations" for use by the directors, script supervisor, etc. The switcher also contains an audio section for the video assist operator, complete with speaker drivers and 2-way talkback to each monitor station.

Video Switcher image Video Switcher image
